High Capacity Slide Dryer


SKU: SI-SDR- Categories: ,

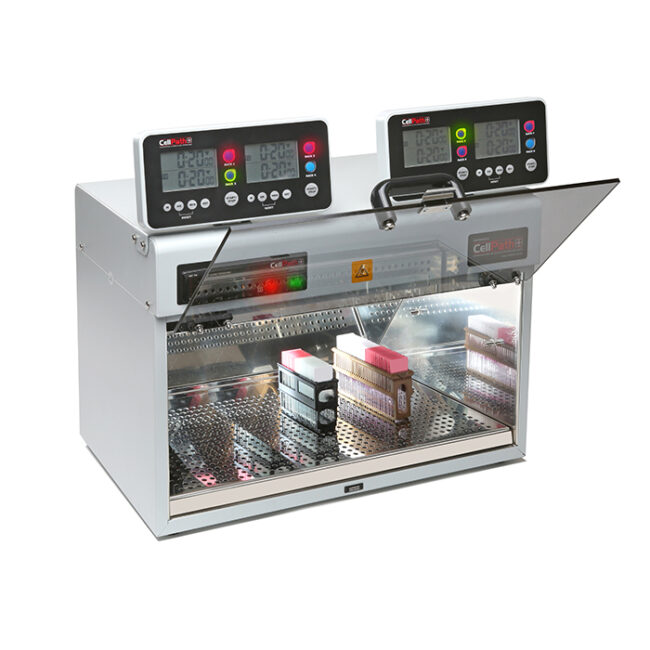

The High Capacity Slide Dryer is designed to provide maximum drying capacity for high volume laboratories.  Air at a digitally controlled temperature is blown through the base of the instrument for rapid and efficient slide drying without the risk of overheating the specimen.  Through this process, drying times can be reduced by approximately 75% when compared to conventional ovens.  Designed with space for up to 13 slide racks (when used without the timer rack system) at 30 slide capacity each for a total capacity of 390 slides.

Innovative resistance hinges on the lid allows users to easily position it at an angle, allowing both hands to be used when placing or removing items from the dryer.  The instrument is designed with a small footprint so it can be located in close proximity to the microtome.  Optional timers and an accompanying rack can be purchased for use on the top of the dryer that allow for timing and monitoring of up to 8 individual racks.  Timers (SI-SDR-TMR1 & SI-SDR-TMR2) and rack (SI-SDR-HLDR) sold separately.

  • Ultra-fast heating system for rapid warm-up
  • Temperature range – ambient to 75°C (+/- 1°C) at 20°C
  • Anti-microbial powder coat finish
  • Integrated circuit breakers to eliminate the need to replace fuses
  • Accommodates up to 390 slides (13 racks of 30)

Dimensions:  18-5/16″ wide x 12-9/16″ deep x 13-3/16″ high

Weight:  33.7 lbs.

Power:  220-240V, 50-60Hz

Heater Power:  800 Watts

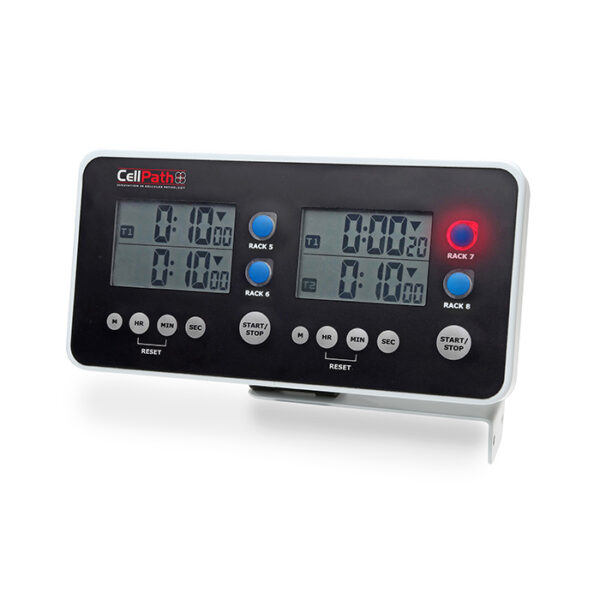

Timer1 allows monitoring of the first through fourth slide racks, while Timer2 monitors the fifth through eighth slide racks when used with the High Capacity Slide Dryer (SI-SDR-HC), sold separately.  Ensures that each slide rack has exactly the correct time in the drying chamber.  Indicates visually and audibly when an individual slide rack has completed drying.  Intended for use with the High Capacity Slide Dryer (SI-SDR-HC).

The Stainless Steel 8 Rack Holder is used to identify slide racks when used with the 4 Rack Timer Units (1-4) and (5-8) on the High Capacity Slide Dryer (SI-SDR-HC).  Each slide rack entry is numbered which corresponds to the rack number on the 4 Rack LEAN Timer ensuring that each slide rack has exactly the correct time in the drying chamber.  Compatible with slide racks from market leading staining instruments;  Leica, Sakura and Thermo Scientific.


Additional information


High Capacity Slide Dryer, Timer1 (Rack 1-4), Timer2 (Rack 5-8), Stainless Steel 8 Rack Holder
